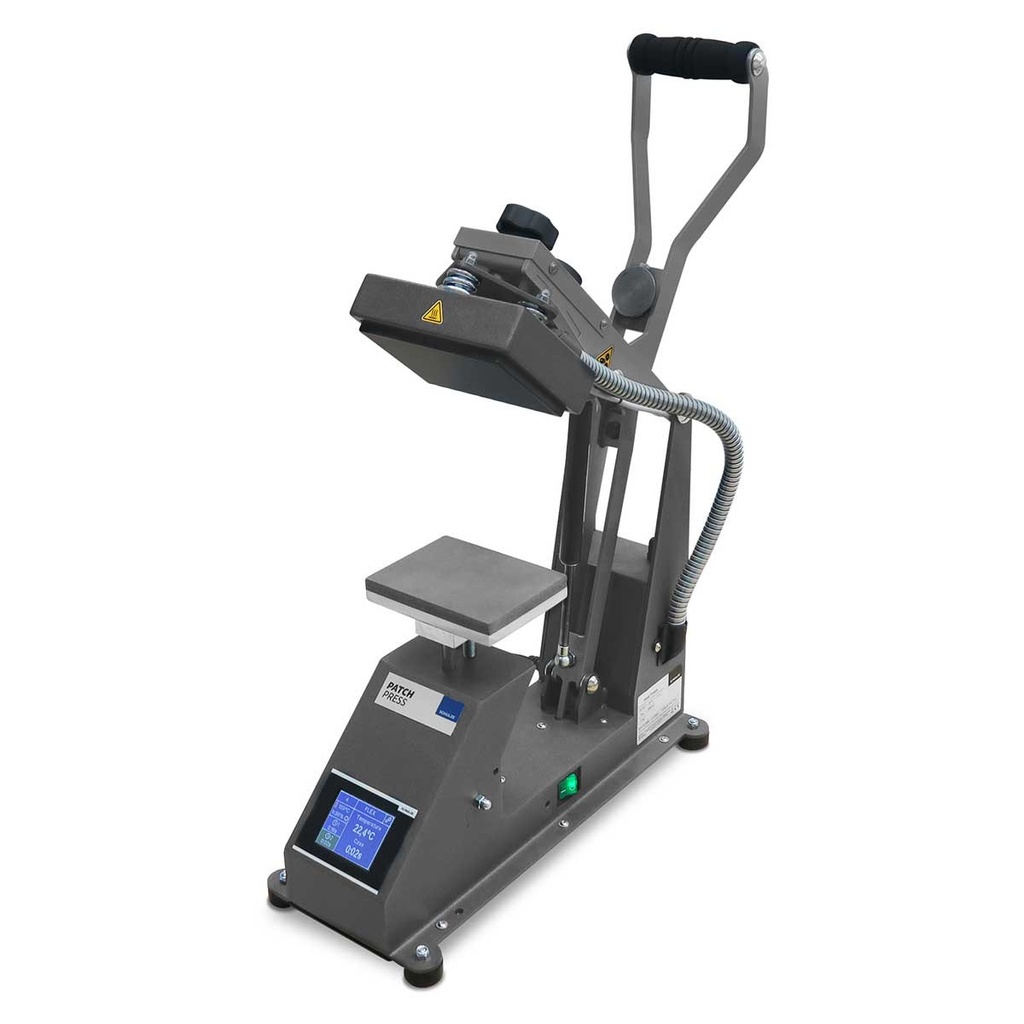

Schulze Patch / Logo Press
The selected dimensions of the heating and base plate make it ideal for textile finishing companies and laundries.
Due to its compact design and low weight, there is always room for it even in cramped work environments.
The power consumption is very low due to the compact heating surface of 10 x 13 cm and the selectable Eco mode. The heating time is a quick 12 minutes.
Modern touch display
Modern touch display for temperature, time, pre-press and transfer counter
ECO MODE
Equipped with the proven Economy mode, which puts the transfer press into "standby" after a certain time.
Optionally available:
Base plates rectangular 5 x 10 cm or round Ø 6 cm
.
| Technical data | |
|---|
| Plate dimensions | 10x13cm |
| Machine dimensions | 43x42x65cm |
| Weight (including packaging) | 19kg |
| Current/Voltage | 230V |
| temperature | max.220°C |
| Temperature accuracy | ± 0.5% |
| Heating power | 0.31kW |
| Preheating time | approx. 12 minutes |
| Time setting | max. 99 min. 59 sec. |
| Contact pressure | max. 300kg |
| Warranty | 2-year, return to base warranty on the press (excluding wearing parts).
Heating elements are considered wearing parts! |
